High-Strength Steel Clutch Pressure Plate with Precision-Machined Diaphragm Spring Design for JAC N56 Trucks

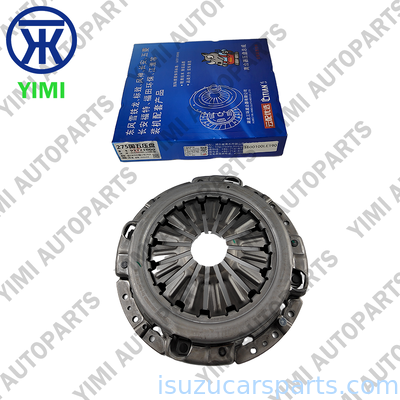

The Clutch Pressure Plate Assembly (OEM Number: 1600100LE190) is a premium-quality, direct replacement drivetrain component designed specifically for JAC N56 series light-duty trucks. This precision-engineered pressure plate provides consistent clamping force for reliable power transmission, smooth engagement, and durable performance.

• OE Quality: Manufactured to strict dimensional and performance specifications for perfect fit and function
• High-Strength Steel Construction: Provides exceptional durability and resistance to heat and wear
• Precision Machining: Contact surfaces accurately finished for smooth, consistent engagement
• Diaphragm Spring Design: Delivers consistent clamping force for reliable torque transfer
• Heat Resistant: Withstands high operating temperatures for extended service life
• Restores Clutch Performance: Eliminates slippage, chatter, and hard shifting
• Protects Drivetrain: Prevents premature wear of clutch disc and flywheel
• Direct Replacement: Simple installation during clutch system service
• Long Service Life: Engineered for reliable performance in light-duty commercial applications

This clutch pressure plate is specifically designed for JAC light-duty trucks. Common applications include:

• JAC N56 - Light-Duty Trucks
• JAC N75 (select models with compatible clutch systems)
• JAC N80 (select models with compatible clutch systems)

Compatible Clutch System: Mechanical or hydraulic clutch actuation systems (verify application)

Professional installation required. Proper clutch system service is critical:

1. Disconnect battery - Disconnect the negative battery cable before beginning work
2. Remove the transmission - Safely remove the transmission assembly from the vehicle
3. Remove the old pressure plate - Unbolt and remove the old pressure plate and clutch disc
4. Inspect the flywheel - Check the flywheel friction surface for wear, scoring, or heat damage
5. Resurface or replace the flywheel - Refinish the flywheel surface or replace if necessary
6. Inspect the release bearing - Check and replace the release bearing if worn
7. Clean thoroughly - Clean the flywheel and pressure plate mounting surfaces
8. Use a clutch alignment tool - Insert the alignment tool through the disc and pilot bearing to center the disc
9. Position the new disc and pressure plate - Place the new disc on the flywheel, then install the new pressure plate
10. Install and torque bolts - Tighten the pressure plate bolts evenly in a crisscross pattern to manufacturer specification
11. Remove the alignment tool - Verify the disc is centered and remove the alignment tool
12. Install new release bearing - Install a new release bearing in the transmission bell housing
13. Reinstall the transmission - Reinstall the transmission assembly
14. Adjust clutch system - Adjust the clutch pedal free play per manufacturer specifications
15. Reconnect battery - Reconnect the battery
16. Test operation - Test clutch pedal feel and shifting operation
17. Road test - Test drive the vehicle to verify smooth clutch engagement and power delivery

• Material Verification: Confirms steel composition meets OE strength and durability specifications
• Dimensional Inspection: Overall dimensions, mounting holes, and friction surface verified against OEM tolerances
• Spring Force Testing: Clamping pressure verified to OE specifications
• Surface Finish Inspection: Contact surface flatness and finish checked for proper engagement
• Heat Treatment Verification: Hardness and durability confirmed
• Visual Inspection: 100% checked for defects, machining flaws, or damage
• Packaged Safely: Protected and securely packaged to prevent damage during transit

• Neutral export packing or customized packaging available
• Carton or wooden case for safe transportation
• Fast delivery for stock items
• Shipping by Express Air or Sea

For pricing, availability, or bulk purchase of the Clutch Pressure Plate 1600100LE190 For JAC N56 Light-Duty Truck JAC Spare Parts, please contact our sales team for a competitive quote and expert technical support.
