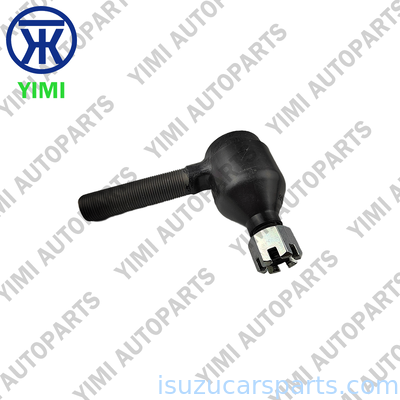

Corrosion-Resistant Coated High-Strength Forged Steel Tie Rod End with Greaseable Ball Joint for JAC N80 Truck Steering Linkage
Basic Properties
Place of Origin:
China
Brand Name:
YIMI
Certification:
ISO/TS16949
Model Number:
JAC N80 Series
Trading Properties
Minimum Order Quantity:
10 pcs
Price:
Negotiable
Payment Terms:
T/T,
Supply Ability:
10000 pcs/month
Specifications
| Surface Finish: | Corrosion-Resistant Coated | Part No: | 3003510LE010 |
| Material: | High-Strength Forged Steel | Position: | Right Side (Passenger Side) |
| Connection Type: | Taper Connection With Greaseable Ball Joint | Condition: | Brand New |
| Fitment: | OEM Standard, Direct Replacement | Function: | Transmits Steering Input, Enables Wheel Movement |
| High Light: | JAC N80 truck tie rod end,forged steel tie rod with greaseable joint,corrosion-resistant steering linkage for JAC N80 |
||
Product Description
Tie Rod End R 3003510LE010 For JAC N80 Truck Steering Linkage Truck Parts
Precision-engineered tie rod end transmits steering input from the steering gear to the wheel hub, ensuring precise directional control and responsive handling for JAC N80 trucks.
| Part Number | 3003510LE010 | Product Name | Tie Rod End R (Right Side) / Steering Tie Rod End |
|---|---|---|---|
| Car Model | JAC N80 Series | Engine Model | - |
| Condition | 100% Brand New | Size | Standard |
| Weight | Standard | Origin | China Mainland |
| Main Market | Middle East, Asia, Africa, South America, North America & Europe | ||
| Package | Neutral Packing Or Make It As Requested | Warranty | 6 Months |
| Material | High-strength aluminum alloy & precision bearings | Cooling Type | Engine coolant circulation |
| Installation | Direct OEM replacement | Quality Standard | OEM equivalent / ISO quality control |
Features & Advantages
- OE Quality: Manufactured to strict dimensional and strength specifications for perfect fit and function
- Heavy-Duty Forged Steel: Provides exceptional strength and durability under severe steering loads
- Precision Taper Connection: Ensures secure, slop-free fitment to steering components
- Greaseable Ball Joint: Allows for regular lubrication, extending service life and preventing premature wear
- Corrosion-Resistant Coating: Protects against rust and environmental damage
- Restores Steering Precision: Eliminates steering wander and loose feel
- Improves Handling: Provides responsive, precise vehicle control
- Prevents Uneven Tire Wear: Correct steering geometry extends tire life
- Critical Safety Component: Ensures reliable steering operation
- Direct Replacement: Simple installation during steering system service
- Long Service Life: Engineered to withstand the rigors of heavy-duty commercial operation
Vehicle & Engine Compatibility
This tie rod end is specifically designed for JAC medium-duty trucks. Common applications include:
- JAC N80 - Medium-Duty Trucks
- JAC N75 (select models with compatible steering systems)
- JAC N56 (select models with compatible steering systems)
- JAC Light Truck Series - Various models with compatible steering configurations
Compatible Steering System: Conventional steering linkage systems with tie rod end configurations
Installation Notes
Professional installation required. This is a critical safety component.
- Raise and secure the vehicle - Safely raise the front of the vehicle and support on jack stands
- Remove the front wheel - Remove the front wheel on the right side for access to steering components
- Remove the old tie rod end - Loosen the jam nut and disconnect the tie rod end from the steering knuckle
- Mark or measure settings - Note the position of the old tie rod end for reference (count exposed threads)
- Inspect related components - Check the steering knuckle, drag link, and other tie rod ends for wear; replace as needed
- Clean mounting area - Clean the steering knuckle taper hole and tie rod threads
- Prepare the new tie rod end - Install grease fitting and apply grease to the ball joint (if not pre-lubricated)
- Install the new tie rod end - Thread the new tie rod end into the tie rod assembly, matching the old setting
- Connect to steering knuckle - Insert the taper stud into the steering knuckle and install the nut
- Torque to specification - Torque the nut to manufacturer specification
- Install cotter pin - Install a new cotter pin to secure the nut
- Tighten jam nut - Tighten the jam nut to manufacturer specification
- Grease the fitting - Apply the recommended grease until grease emerges from the joint
- Reinstall the wheel - Reinstall the wheel and torque lug nuts to specification
- Lower the vehicle - Lower the vehicle to the ground
- Check steering operation - Turn the steering wheel lock-to-lock to check for smooth operation
- Perform wheel alignment - Professional wheel alignment (toe-in adjustment) is mandatory
- Road test - Test drive the vehicle to verify straight-line stability and responsive steering
Quality Control
- Material Verification: Spectrographic analysis confirms steel composition meets OE strength specifications
- Dimensional Inspection: Taper size, thread size, and overall geometry verified against OEM tolerances
- Ball Joint Preload Testing: Joint articulation and preload checked for proper feel and longevity
- Taper Inspection: Connection taper dimensions verified for secure fitment
- Thread Inspection: Threads verified to specifications
- Visual Inspection: 100% checked for forging defects, cracks, or surface flaws
- Packaged Safely: Protected and securely packaged to prevent damage during transit
Packaging and Delivery
- Neutral export packing or customized packaging available
- Carton or wooden case for safe transportation
- Fast delivery for stock items
- Shipping by Express Air or Sea
Inquiry
For pricing, availability, or bulk purchase of the Tie Rod End R 3003510LE010 For JAC N80 Truck Steering Linkage Truck Parts, please contact our sales team for a competitive quote and expert technical support.
