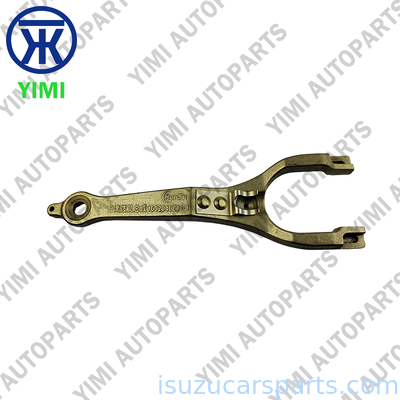

High-Strength Forged Steel Clutch Shift Fork Precision-Machined Corrosion-Resistant Treated for JAC N56 Truck

Precision-engineered clutch shift fork transfers clutch pedal motion to the release bearing, enabling smooth clutch engagement and disengagement for reliable shifting in JAC N56 trucks.

• OE Quality: Manufactured to strict dimensional and material specifications for perfect fit and function
• High-Strength Forged Steel: Provides exceptional strength and durability under repetitive high loads
• Precision Machining: Accurately positioned pivot points and fork arms ensure proper alignment
• Wear-Resistant: Hardened contact surfaces resist wear for extended service life
• Smooth Engagement: Enables smooth clutch engagement and disengagement
• Direct Replacement: Simple installation during clutch system service
• Long Service Life: Engineered to withstand the rigors of commercial truck operation

This clutch shift fork is specifically designed for JAC trucks. Common applications include:

• JAC N56 - Light/Medium-Duty Trucks
• JAC N75 - Compatible models (verify application)
• JAC N80 - Compatible models (verify application)
• JAC Light Truck Series - Various models with compatible clutch systems

1. Disconnect battery - Disconnect the negative battery cable before beginning work
2. Remove the transmission - Safely remove the transmission assembly from the vehicle
3. Access the clutch housing - Remove the clutch housing cover or bell housing inspection plate
4. Remove the release bearing - Disconnect the release bearing from the shift fork
5. Remove the old shift fork - Unbolt or unclip the shift fork from its pivot point
6. Inspect the pivot point - Check the pivot ball/stud for wear or damage; replace if necessary
7. Inspect clutch components - Check the clutch disc, pressure plate, and release bearing for wear
8. Clean the mounting area - Clean the pivot point and surrounding area
9. Prepare the new shift fork - Apply high-temperature grease to the pivot points
10. Install the new shift fork - Position the new shift fork on its pivot point and secure
11. Install the release bearing - Attach the release bearing to the shift fork
12. Reinstall the transmission - Reinstall the transmission assembly
13. Adjust clutch free play - Adjust the clutch pedal free play per manufacturer specifications
14. Reconnect battery - Reconnect the battery
15. Test operation - Test clutch pedal feel and shifting operation
16. Road test - Test drive the vehicle to verify smooth clutch engagement and gear changes

• Material Verification: Confirms steel composition meets OE strength specifications
• Dimensional Inspection: All pivot points and mounting dimensions verified against OEM tolerances
• Hardness Testing: Contact surface hardness verified for wear resistance
• Surface Finish Inspection: Machined surfaces checked for proper finish
• Visual Inspection: 100% checked for forging defects, machining flaws, or damage
• Packaged Safely: Protected and securely packaged to prevent damage during transit
