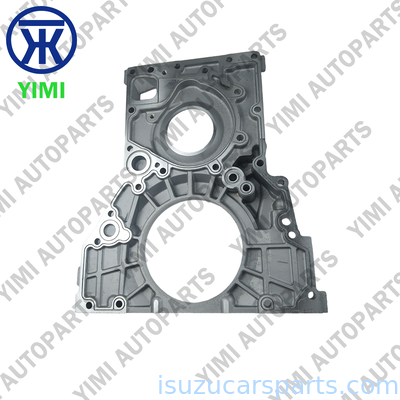

Corrosion-Resistant High-Grade Cast Aluminum Alloy Timing Cover Direct Replacement for ISUZU 4HK1 Engine

Precision-engineered timing cover protects the engine timing gears, chain, and related components from contaminants, while providing proper sealing and oil containment for ISUZU 4HK1 diesel engines.

• OE Quality: Manufactured to strict ISUZU dimensional and material specifications for perfect fit and function
• Precision Cast Aluminum: Lightweight, robust, and dimensionally stable for long-term reliability
• Corrosion-Resistant: Treated surface resists degradation from oil, coolant, and environmental exposure
• Accurate Machining: Sealing surfaces and mounting holes machined to exacting tolerances for leak-free installation
• Integrated Oil Galleries: Designed for proper oil drainage and containment
• Protects Timing Components: Prevents dirt, debris, and moisture from contaminating gears/chain
• Prevents Oil Leaks: Restores proper front cover sealing
• Restores Structural Integrity: Replaces cracked or warped covers for reliable engine protection
• Direct Replacement: Simple installation during timing system or engine service
• Long Service Life: Engineered to withstand the rigors of heavy-duty commercial operation

This timing cover is specifically designed for ISUZU medium-duty trucks. Common applications include:

• ISUZU 700P – Medium-Duty Trucks
• ISUZU NPR – Medium-Duty Trucks (various models)
• ISUZU NQR – Medium-Duty Trucks
• ISUZU NPR HD – Heavy-Duty Variants

Professional engine builder or mechanic installation required:

1. Disconnect battery – Disconnect the negative battery cable before beginning work
2. Drain engine oil and coolant – Drain fluids as necessary for access to the timing cover
3. Remove front engine components – Remove the fan, radiator shroud, drive belts, and accessory components
4. Remove the harmonic balancer/crankshaft pulley – Use a puller to remove the crankshaft pulley/damper
5. Remove the old timing cover – Unbolt and carefully remove the timing cover
6. Remove old gasket – Clean the engine block sealing surface and remove all old gasket material
7. Inspect the timing components – Check timing gears/chain, tensioners, and guides for wear; replace as needed
8. Inspect the crankshaft seal – Replace the front crankshaft oil seal with a new one (recommended)
9. Clean thoroughly – Clean the engine block surface and the new timing cover thoroughly
10. Prepare the new timing cover – Install new gaskets and seals onto the new cover (if not pre-installed)
11. Apply sealant (if required) – Apply a thin bead of RTV/sealant to specified areas per the service manual
12. Position the new cover – Align the cover on the engine block
13. Install and torque bolts – Install bolts and tighten in a crisscross pattern to manufacturer specification
14. Reinstall the crankshaft pulley – Install the harmonic balancer/crankshaft pulley
15. Reinstall front components – Reinstall all front engine components in reverse order
16. Refill fluids – Refill engine oil and coolant to proper levels
17. Reconnect battery – Reconnect the negative battery cable
18. Start the engine – Start the engine and check for oil and coolant leaks
19. Check timing – Verify engine timing is correct (if any timing components were disturbed)

• Material Verification: Spectrographic analysis confirms aluminum alloy composition meets OE specifications
• Dimensional Inspection: Overall dimensions, mounting holes, and sealing surfaces verified against OEM tolerances
• Casting Integrity: Non-destructive testing for porosity, cracks, or internal defects
• Sealing Surface Inspection: Flatness and surface finish checked for proper gasket sealing
• Thread Verification: All mounting holes and threaded inserts verified to specification
• Visual Inspection: 100% checked for casting defects, machining flaws, or surface damage
• Packaged Safely: Protected and securely boxed to prevent damage during transit

• Neutral export packing or customized packaging available
• Carton or wooden case for safe transportation
• Fast delivery for stock items
• Shipping by Express Air or Sea
