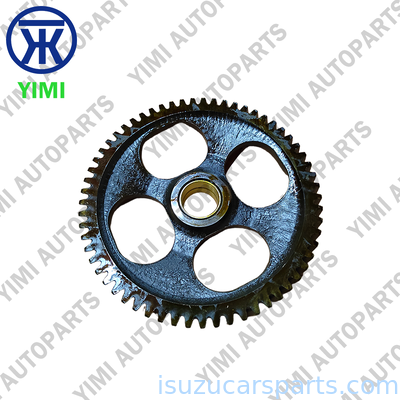

Idler Gear 8-97094546-2 For ISUZU FRR FSR FTR 4HG1T Engine 8970945462 Heavy Duty Truck Parts

Features & Advantages

• OE Quality: Manufactured to strict ISUZU dimensional and metallurgical specifications for perfect fit and function.

• Induction-Hardened Teeth: Advanced heat treatment achieves HRC 50-55 surface hardness for exceptional wear resistance.

• Precision Machining: Gear teeth accurately cut to exacting tolerances for smooth, quiet operation.

• Dimensional Accuracy: Precise bore sizing ensures proper fitment on the idler shaft with correct clearances.

• Synchronized Timing: Maintains precise camshaft and injection pump timing for optimal engine performance.

• Long Service Life: Engineered to withstand the rigors of heavy-duty commercial operation.

• Restores Engine Performance: Eliminates timing drift, power loss, and rough running caused by worn gears.

• Direct Replacement: Simple installation during engine overhaul or timing system service.

• Reliable Power Transmission: Ensures efficient transfer of rotational power between engine components.

• Prevents Engine Damage: Protects against catastrophic piston-to-valve contact caused by timing failure.



Vehicle & Engine Compatibility

This idler gear is specifically designed for ISUZU medium-duty trucks and equipment. Common applications include:

• ISUZU FRR — Medium-Duty Trucks

• ISUZU FSR — Medium-Duty Trucks

• ISUZU FTR — Medium-Duty Trucks

ISUZU 4HG1T Engine Specifications:

• 4-Cylinder, Inline Diesel

• Displacement: 4.6L (4570cc)

• Turbocharged, Intercooled

• Valvetrain: OHV

• Widely used in FRR/FSR/FTR series trucks

Industrial Applications:

• Medium-duty trucks, buses, and various commercial equipment utilizing the 4HG1T engine.

Installation Notes

Professional engine builder installation required:

1. Disconnect battery — Disconnect the negative battery cable before beginning work.

2. Drain engine oil/coolant — Drain fluids as necessary for access to timing cover.

3. Remove timing cover — Remove the front timing gear cover and gasket.

4. Align timing marks — Rotate the engine to top dead center (TDC) and record timing mark positions.

5. Remove the old idler gear — Unbolt the idler gear shaft/retainer and carefully remove the gear.

6. Inspect idler shaft and bushings — Check the idler shaft and bushings/bearings for wear or damage; replace as needed.

7. Inspect mating gears — Check crankshaft and camshaft gear teeth for wear; replace if damaged.

8. Clean thoroughly — Clean the timing cavity and all gear mounting surfaces.

9. Prepare the new idler gear — Inspect the new gear and apply assembly lube to the shaft and bushings.

10. Install the new idler gear — Position the gear on the idler shaft with timing marks correctly aligned.

11. Secure the gear — Install and torque the retaining bolt/shaft to manufacturer specifications.

12. Verify timing alignment — Reconfirm all timing marks are correctly aligned per the service manual.

13. Install timing cover — Install new gasket and reinstall the timing cover.

14. Refill fluids — Refill engine oil and coolant as required.

15. Reconnect battery — Reconnect the battery and start the engine.

16. Check for proper operation — Listen for unusual noise and verify engine runs smoothly.
