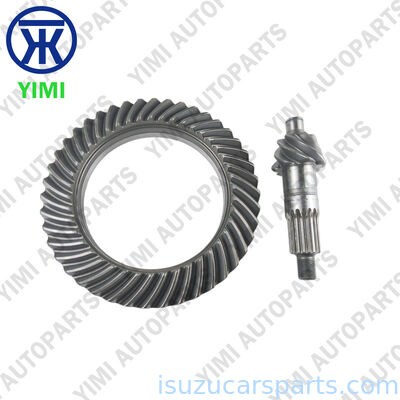

Ring Pinion 1-41210417-0 For Isuzu NPR 4BG1 Truck Differential 1412104170

Product Description

Function (within 200 characters):
A precision-forged hypoid gear set that transmits engine torque from the propeller shaft to the rear axle shafts, providing final speed reduction and torque multiplication for heavy-duty Isuzu NPR trucks.

Product Description (Detailed):
The Ring and Pinion Gear Set (OEM Numbers: 1-41210417-0 / 1412104170) , also known as a crown wheel and pinion or final drive gear set, is a premium-quality, direct replacement differential component engineered specifically for the ISUZU NPR series medium-duty trucks powered by the legendary 4BG1 4.3L diesel engine. As the heart of the rear axle assembly, this hypoid gear set is responsible for the final reduction of rotational speed and the multiplication of torque before it is transmitted to the wheels, directly impacting vehicle acceleration, load-pulling capability, and driveline efficiency.

Manufactured to meet or exceed original equipment (OE) specifications, this ring and pinion set is forged from high-strength, case-hardened alloy steel (SAE 8620 / 4320 equivalent) and precision-ground using advanced Gleason gear cutting technology. The tooth profiles are induction-hardened to HRC 58-62 and lapped as a matched set to ensure perfect contact, quiet operation, and maximum fatigue resistance under heavy commercial loads. The ring gear features a precisely drilled bolt pattern for secure mounting to the differential case, and the pinion shaft is machined with a pre-installed pilot bearing surface and integrated splines for a direct, wobble-free fitment into the banjo-type axle housing. This set is designed for the semi-floating, 4.11:1 or similar ratio axle configuration (verify ratio before ordering).

A worn or damaged final drive set will produce unmistakable symptoms: a high-pitched whine or howl during acceleration (pinion gear wear), a growl or rumble on deceleration (ring gear backlash), or a clunk when shifting from drive to reverse (excessive gear lash). In severe cases, chipped or broken teeth can lead to complete axle lock-up, causing catastrophic driveline failure and stranding the vehicle. Whether you are rebuilding a rear differential on a high-mileage NPR delivery truck, changing axle ratios for a specific application, or repairing a failed factory gear set, this OE-quality ring and pinion set is the direct-fit solution to restore quiet, reliable power transfer and drivability.

Technical Data & Quality Features

• High-Strength Alloy Steel: Forged from premium SAE 8620 / 4320 alloy steel, heat-treated for exceptional core toughness and surface hardness to withstand the high torque demands of the 4BG1 engine (80–100 HP, 260–320 N·m).

• Precision Matched Set: Each pinion and ring gear are lapped together as a set and etched with matching numbers to ensure correct tooth contact, quiet operation, and long gear life.

• Hypoid Spiral Bevel Design: Provides smooth, efficient torque transfer with higher load capacity and quieter operation compared to straight bevel gears.

• Crown Wheel (Ring Gear) Features: Precision-drilled bolt holes for secure mounting to the differential case; hand-finished bolt seating surface ensures a wobble-free fit.

• Drive Pinion Features: Integrated spline shaft for a direct fit to the differential yoke; includes a pre-ground pilot bearing surface and thrust face for accurate depth setting.

• Complete Installation Kit: For a professional repair, also order a differential overhaul kit (carrier bearings, pinion bearings, crush sleeve, pinion nut, ring gear bolts, and shims) — not included.

• Restores Power Transfer: Replaces worn, chipped, or broken gears, restoring full torque delivery and eliminating driveline backlash and gear whine.

• Heavy-Duty Design: Engineered for the stop-start cycles, load-hauling duties, and long-distance reliability required of ISUZU NPR medium-duty trucks (Class 3-4).

Quality Control (Transparent & Verifiable)

• Material Verification: Forged alloy steel composition (SAE 8620 / 4320) verified via spectrographic analysis, meeting JIS / SAE durability and fatigue standards.

• Dimensional Accuracy: Ring gear bolt hole pattern, ring gear pilot diameter, pinion shaft spline profile, and overall gear geometry verified against OE blueprints using CMM equipment (±0.02 mm tolerance).

• Tooth Profile Inspection: Gear teeth inspected for profile, lead, pitch, and surface finish using dedicated gear checking equipment (Gleason / Klingelnberg) — ensures quiet, efficient power transfer.

• Hardness Testing: Induction case depth (0.8–1.2 mm) and surface hardness (HRC 58–62) verified via Rockwell testing on batch samples.

• Lapping & Contact Pattern Check: Each matched set is lapped and contact pattern tested to ensure proper tooth bearing (centred, slightly toe-loaded) and quiet operation.

• Runout Measurement: Radial runout of ring gear mounting surface and pinion flange measured to ≤ 0.05 mm — guarantees concentric mounting and eliminates vibration.

• Backlash Verification: Sample sets tested in a differential housing to confirm correct backlash range (0.10–0.20 mm for hypoid gear sets).

• ISO 9001:2015 / IATF 16949 Certified: Facility meets international automotive quality management standards, ensuring consistent, traceable, and reliable output for wholesale commercial fleets.

• Visual Inspection: 100% inspected for grinding burns, surface cracks, chip marks, or porosity before shipment.

• Packaged Safely: Anti‑corrosion oil‑coated, individually sealed in a moisture‑barrier VCI bag, and boxed with OE‑style part labeling to prevent rust and edge damage during long‑term storage and international shipping.

Packaging & Supply

• Individual Packaging: Each ring and pinion set is anti‑corrosion oil‑coated, individually sealed in a moisture‑barrier VCI bag, and boxed with OE‑style part labeling. Ring gear bolts and pinion nut are not included.

• Wholesale / Bulk Orders: Available for heavy‑truck parts distributors, differential specialists, workshop chains, fleet operators, and international exporters — sold in case packs of 5, 10, 20, 50 sets; pallet pricing available for volume orders.

• Customization: Neutral or private‑label retail packaging (including custom barcode labels) is available for volume wholesale orders (minimum order quantity applies). Discuss your branding requirements with our sales team.

• Fast Shipping: Ready stock for immediate dispatch worldwide via express courier (DHL, FedEx, UPS) for urgent repairs, or economical sea freight from central logistics hubs (Guangzhou, Singapore, Rotterdam, Los Angeles).

• Wholesale Support: Long‑term supply agreements, tiered commercial pricing, and drop‑shipping options available for approved distributors. Contact our ISUZU drivetrain department to set up a wholesale account today.

Inquiry

For pricing, availability, or bulk purchase of the ISUZU Ring and Pinion Gear 1-41210417-0 (1412104170) for 4BG1, NPR, and compatible N‑Series trucks, please contact our sales team for a competitive wholesale quote and expert technical support. We respond to all inquiries within 24 hours.
